Sản phẩm

SHANGCHAI 330~825KVA

Giá bán : Liên hệ
Mã sản phẩm: SHANGCHAI 330~825KVA

Lượt xem: 1129

Quy cách:

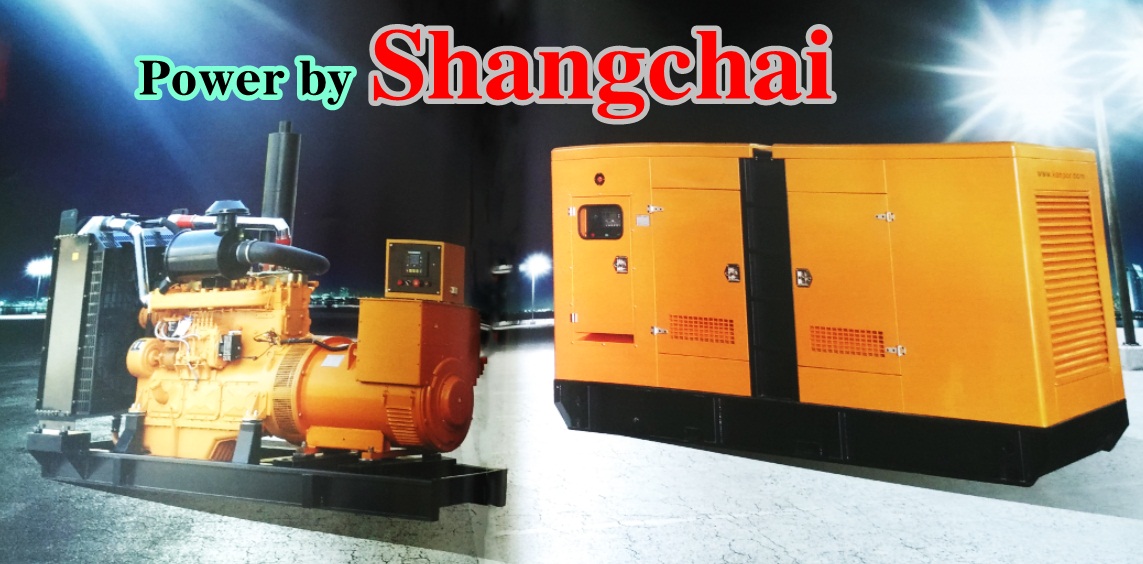

Power by:	SHANGCHAI
330~825KVA

Technical Data
Genset Model		KPS330	KPS350	KPS400	KPS375	KPS450	KPS500	KPS550	KPS660	KPS688	KPS825
Rated Power	KW/KVA	240/300	260/325	300/375	280/350	320/400	360/450	400/500	480/600	500/625	600/750
Standby Power	KW/KVA	260/330	280/350	320/400	300/375	360/450	400/500	440/550	528/660	550/688	660/825
Rated Voltage	V	220V/127V380V/220V400V/230V415V/240V480V/277V600V/346V
Speed	RPM	1500/1800
Rated frequency	Hz	50/60
Engine Model		SC13G420D2	SC13G420D2	SC12E460D2	SC12E460D2	SC15G500D2	SC25G610D2	SC25G690D2	SC27G755D2	SC27G830D2	SC33W990D2
Engine Power	KW	308	308	338	338	373	445	505	555	610	726
Air intake way		Turbo	Turbo	Turbo	Turbo	Turbo	Turbo	Turbo	Turbo	Turbo	Turbo
Governor		Electronic	Electronic	Electronic	Electronic	Electronic	Electronic	Electronic	Electronic	Electronic	Electronic
Cylinder	QTY	6	6	6	6	6	12	12	12	12	6
Bore*stroke	mm*mm	135x150	135x150	128x153	128x153	135x165	135x150	135x150	135x155	135x155	180x215
Displacement	L	12.88	12.88	11.8	11.8	14.16	25.8	25.8	26.6	26.6	32.8
Fuel Consumption	g/kw.h	200	200	192	192	200	202	202	202	202	205
Compression Ratio		17:1	17:1	17:1	17:1	15.5:1	16.4:1	16:1	16:1	16:1	16:1
Alternator Model		STF-314D	STF-314ES	STF-314FS	STF-314E	STF-314F	STF-354C	STF-345D	STF-354E	STF-354FS	STF-634B
Votage Regulation		AVR
Excitation Method		Brushless
Open Type Size	mm	3000x1300x1800	3000x1300x1800	3000x1300x1800	3000x1300x1800	3200x1400x1900	3400x1900x1900	3600x1900x1900	3600x1900x2015	3600x1900x2015	3800x2000x2200
Open Type Weight	kg	2580	2650	2650	2750	3260	3300	3500	3880	4000	4100
Soundproof Size	mm	3500x1500x2000	3500x1500x2000	3500x1500x2000	3500x1500x2000	3700x1600x2000	4000x2000x2100	4200x2000x2200	4200x2000x2200	4200x2000x2200	4500x2100x2250
Soundpoof Weight	kg	3600	3680	3680	3800	4600	5300	5600	5800	5950	6000
