PERKINS 300~880KVA

Giá bán : Liên hệ
Mã sản phẩm: PERKINS 300~880KVA

Lượt xem: 1356

Quy cách:

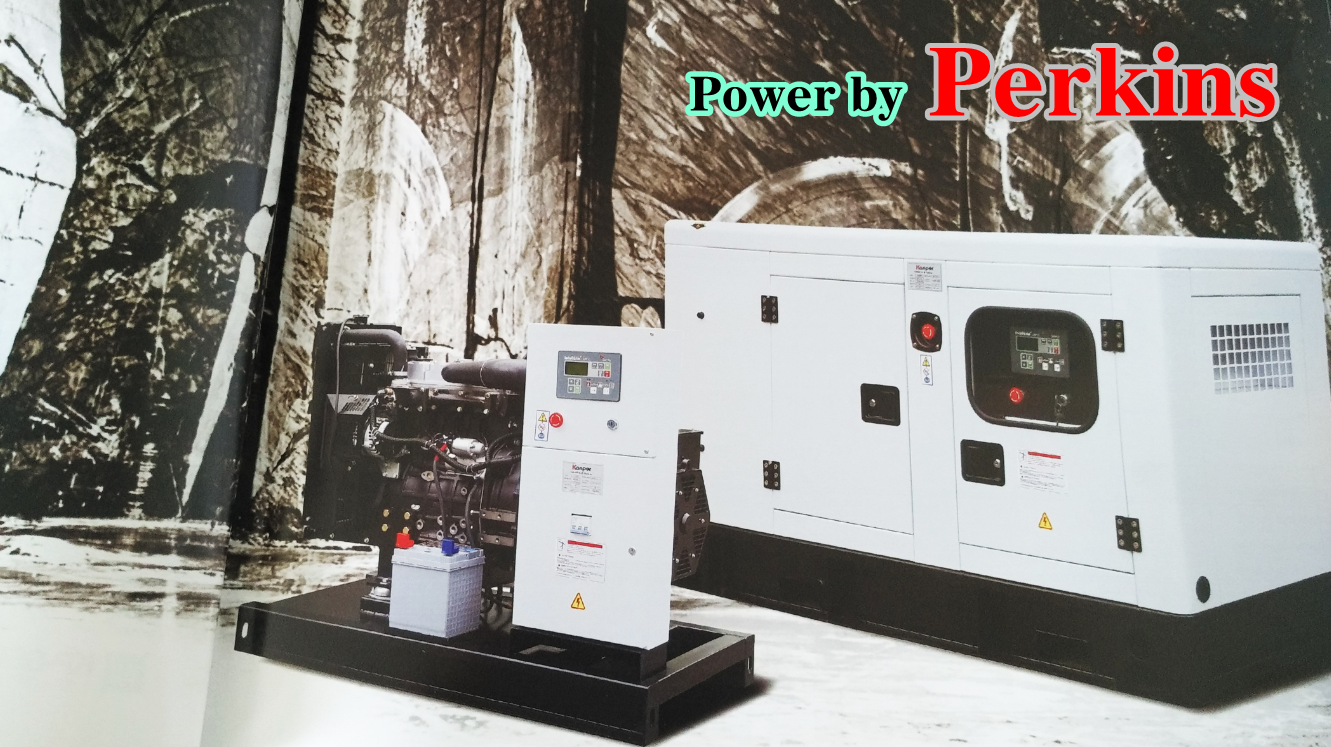

Power by:	Perkins
300~880KVA								DIESEL GENERTATOR SETS

Technical Data
Genset Model		KPP300	KPP330	KPP385	KPP440	KPP500	KPP550	KPP660	KPP715	KPP825	KPP880
Rated Power	KW/KVA	220/275	240/300	280/350	320/400	360/450	400/500	480/600	520/650	600/750	640/800
Standby Power	KW/KVA	240/300	264/330	308/385	352/440	400/500	440/550	528/660	572/715	660/825	704/880
Rated Voltage	V	220V/127V380V/220V400V/230V415V/240V480V/277V600V/346V
Speed	RPM	1500/1800
Rated frequency	Hz	50/60
Engine Model		1606A-E93TAG4	1606A-E93TAG5	2206C-E13TAG2	2206C-E13TAG3	2506C-E15TAG1	2506C-E15TAG2	2806C-E18TAG1A	2806A-E18TAG2	4006-23TAG2A	4006-23TAG3A
Engine Power	KW	261	287	368	413	451	495	593	628	721	786
Air intake way		Turbo	Turbo	Turbo	Turbo	Turbo	Turbo	Turbo	Turbo	Turbo	Turbo
Governor		Electronic	Electronic	Electronic	Electronic	Electronic	Electronic	Electronic	Electronic	Electronic	Electronic
Cylinder	QTY	6	6	6	6	6	6	6	6	6	6
Bore*stroke	mm*mm	117x146	117x146	130x157	130x157	137x171	137x171	145x183	145x183	160x190	160x190
Displacement	L	9.3	9.3	12.5	12.5	15.2	15.2	18.1	18.1	22.9	22.9
Fuel Consumption	g/kw.h	198	198	196	197	199	199	203	202	202	210
Compression Ratio		17.2:1	17.2:1	16.3:1	16.3:1	16:1	16:1	14.5:1	14.5:1	13.6:1	13.6:1
Alternator Model		STF-314C	STF-314D	STF-314E	STF-314F	STF-354C	STF-354D	STF-354E	STF-354F	STF-634B	STF-634C
Votage Regulation		AVR
Excitation Method		Brushless
Open Type Size	mm	3300x980x1700	3300x980x1700	3400x1100x1750	3400x1100x1750	3500x1300x1900	3500x1300x1900	3800x1400x2000	3800x1400x2000	4200x1500x2100	4200x1500x2100
Open Type Weight	kg	2900	3000	3100	3250	3380	3700	3800	3940	4260	4450
Soundproof Size	mm	3800x1300x1900	3800x1300x1900	4000x1500x1950	4000x1500x1950	4200x1600x2100	4300x1600x2100	4800x1700x2150	4800x1700x2150	5500x1800x2250	5500x1800x2250
Soundpoof Weight	kg	3920	4000	4200	4500	4800	5200	5500	5700	5900	6100
