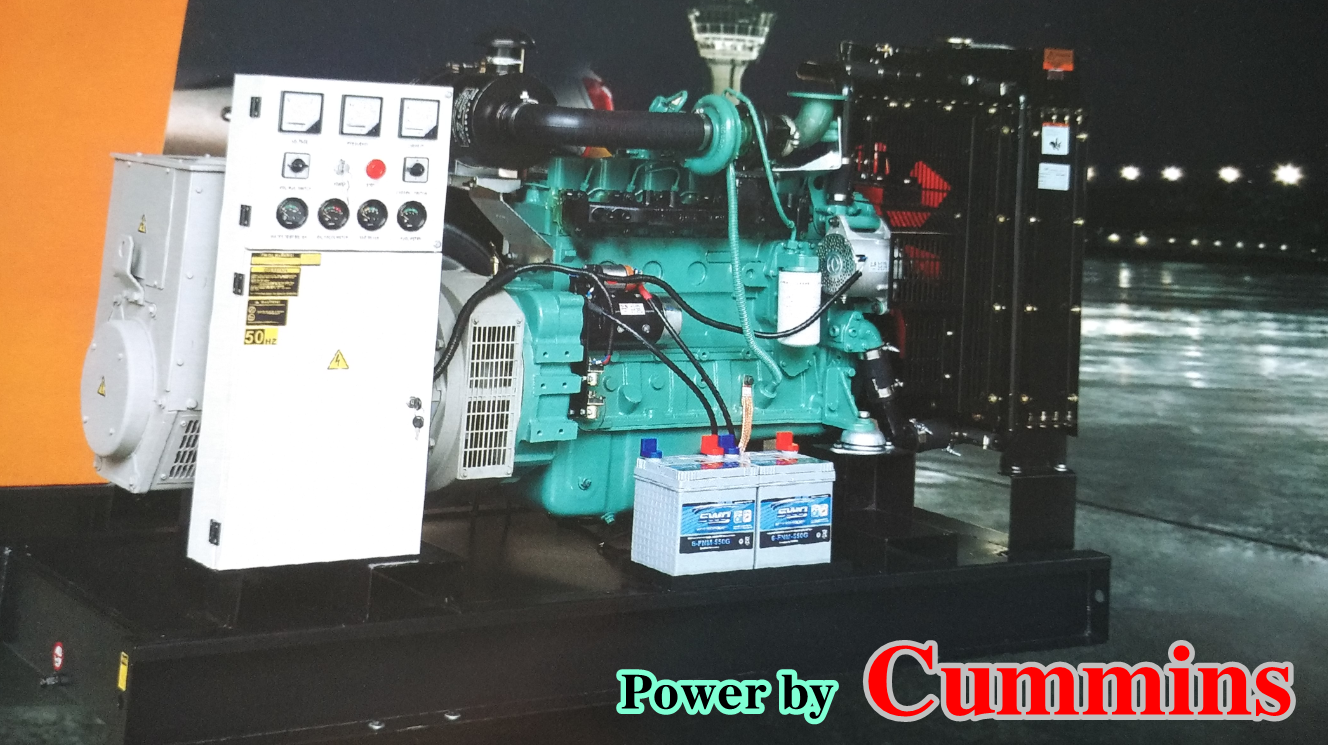

CUMMINS 25~110KVA
- Giá bán : Liên hệ
- Mã sản phẩm: CUMMINS 25~110KVA
- Lượt xem: 1405
- Quy cách:
| Power by: | Cummins | ||||||||||
| 25~110KVA | DIESEL GENERTATOR SETS | ||||||||||
| Technical Data | |||||||||||
| Genset Model | KPC25 | KPC27.5 | KPC30 | KPC33 | KPC40 | KPC45 | KPC55 | KPC66 | KPC93.5 | KPC110 | |
| Rated Power | KW/KVA | 18/23 | 20/25 | 22/27.5 | 24/30 | 30/38 | 32/40 | 40/50 | 48/60 | 68/85 | 80/100 |
| Standby Power | KW/KVA | 22/25 | 22/27.5 | 24/30 | 27/33 | 32/40 | 36/45 | 44/55 | 52.8/66 | 75/93.5 | 88/110 |
| Rated Voltage | V | 220V/127V380V/220V400V/230V415V/240V480V/277V600V/346V | |||||||||
| Speed | RPM | 1500/1800 | |||||||||
| Rated frequency | Hz | 50/60 | |||||||||
| Engine Model | 4B3.9 - G1 | 4B3.9 - G1 | 4B3.9 - G2 | 4BT3.9 - G1 | 4BT3.9 - G1 | 4BT3.9 - G2 | 4BTA3.9 - G2 | 4BTA3.9 - G2 | 6BT5.9 - G1 | 6BT5.9 - G2 | |
| Engine Power | KW | 27 | 27 | 27 | 40 | 40 | 40 | 55 | 55 | 92 | 92 |
| Air intake way | Natural | Natural | Natural | Turbo | Turbo | Turbo | Turbo | Turbo | Turbo | Turbo | |
| Governor | Mechanical | Mechanical | Electronic | Mechanical | Mechanical | Electronic | Electronic | Electronic | Mechanical | Electronic | |
| Cylinder | QTY | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 6 | 6 |
| Bore*stroke | mm*mm | 102x120 | 102x120 | 102x120 | 102x120 | 102x120 | 102x120 | 102x120 | 102x120 | 102x120 | 102x120 |
| Displacement | L | 3.9 | 3.9 | 3.9 | 3.9 | 3.9 | 3.9 | 3.9 | 3.9 | 5.9 | 5.9 |
| Fuel Consumption | g/kw.h | 228 | 228 | 214 | 214 | 214 | 214 | 216 | 216 | 214 | 214 |
| Compression Ratio | 16.5:1 | 16.5:1 | 16.5:1 | 16.5:1 | 16.5:1 | 16.5:1 | 16.5:1 | 16.5:1 | 17.5:1 | 17.5:1 | |
| Alternator Model | STF-184E | STF-184F | STF-184F | STF-184G | STF-184H | STF-184J | STF-224D | STF-224E | STF-224G | STF-274C | |
| Votage Regulation | AVR | ||||||||||
| Excitation Method | Brushless | ||||||||||
| Open Type Size | mm | 1710x700x1340 | 1710x700x1340 | 1710x700x1340 | 1800x700x1340 | 1800x700x1340 | 1800x700x1340 | 1850x800x1400 | 1850x800x1400 | 2400x800x1460 | 2400x820x1460 |
| Open Type Weight | kg | 800 | 830 | 830 | 900 | 920 | 930 | 980 | 1030 | 1370 | 1480 |
| Soundproof Size | mm | 2100X1000X1200 | 2100X1000X1200 | 2100X1000X1200 | 2100X1000X1200 | 2100X1000X1200 | 2100X1000X1200 | 2300X1060X1300 | 2300X1060X1300 | 2900X1060X1450 | 2900X1060X1450 |
| Soundpoof Weight | kg | 1100 | 1150 | 1150 | 1200 | 1280 | 1300 | 1400 | 1480 | 2100 | 2200 |
