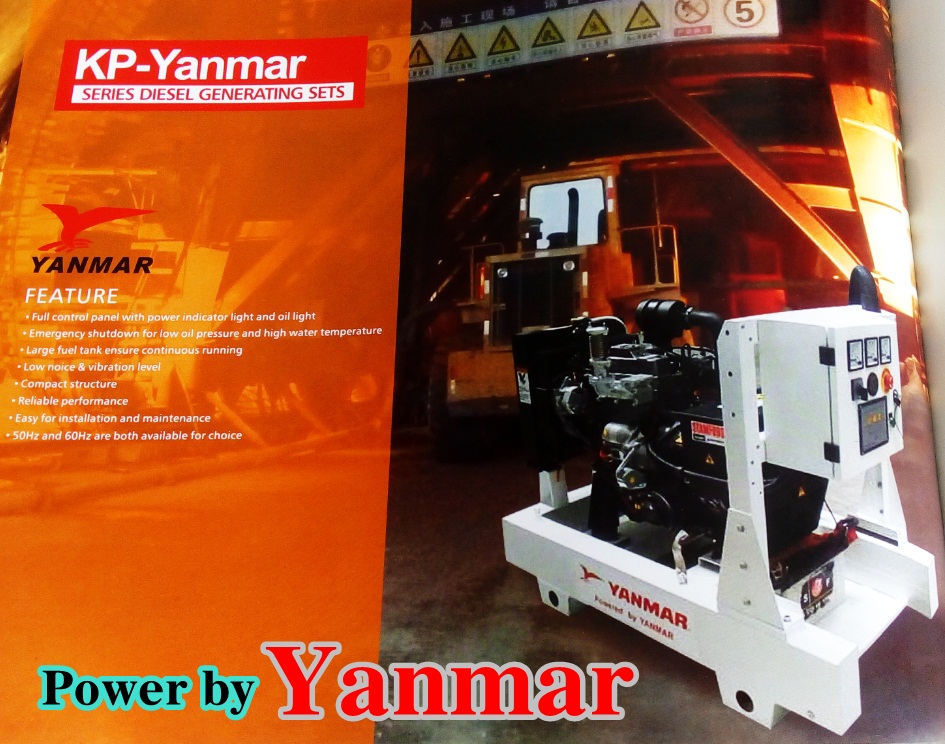

YANMAR 6.6~66KVA
- Giá bán : Liên hệ
- Mã sản phẩm: YANMAR 6.6~66KVA
- Lượt xem: 1447
- Quy cách:
| Power by: | Yanmar | |||||||||||
| 6.6~66KVA | ||||||||||||
| Technical Data | ||||||||||||
| Genset Model | KPYM6.6 | KPYM10 | KPYM12 | KPYM15 | KPYM18 | KPYM22.5 | KPYM25 | KPYM40 | KPYM50 | KPYM55 | KPYM66 | |
| Rated Power | KW/KVA | 5/6 | 6.5/8.1 | 8.8/10 | 10.8/13.5 | 12.8/16 | 16/20 | 18/22.5 | 30/37.5 | 36/45 | 40/50 | 48/60 |
| Standby Power | KW/KVA | 5.5/6.6 | 8/10 | 9.6/12 | 12/15 | 14.4/18 | 18/22.5 | 20/25 | 32/40 | 40/50 | 44/55 | 52.8/66 |
| Rated Voltage | V | 220V/127V380V/220V400V/230V415V/240V480V/277V600V/346V | ||||||||||
| Speed | RPM | 1500/1800 | ||||||||||
| Rated frequency | Hz | 50/60 | ||||||||||
| Engine Model | 3TNM68-GGE | 3TNV76-GGE | 3TNV82A-GGE | 3TNV88T-GGE | 3TNV84T-GGE | 4TNV88-GGE | 4TNV84T-GGE | 4TNV98-GGE | 4TN98T-GGE | 4TNV106-GGE | 4TNV106-GGE | |
| Engine Power | KW | 6.1 | 9 | 11 | 13.2 | 15.6 | 17.7 | 21 | 34.1 | 41.4 | 49.4 | 56 |
| Air intake way | Natural | Natural | Natural | Natural | Turbo | Natural | Turbo | Natural | Turbo | Natural | Turbo | |
| Governor | Electronic | Electronic | Electronic | Electronic | Electronic | Electronic | Electronic | Electronic | Electronic | Electronic | Electronic | |
| Cylinder | QTY | 3 | 3 | 3 | 3 | 3 | 4 | 4 | 4 | 4 | 4 | 4 |
| Bore*stroke | mm*mm | 68x72 | 76x82 | 82x84 | 88x90 | 84x90 | 88x90 | 84x90 | 98x110 | 98x110 | 106x125 | 106x125 |
| Displacement | L | 0.784 | 1.116 | 1.331 | 1.642 | 1.496 | 2.19 | 1.995 | 3.319 | 3.319 | 4.412 | 4.412 |
| Fuel Consumption | g/kw.h | 265 | 258 | 245 | 245 | 245 | 245 | 245 | 231 | 222 | 237 | 220 |
| Compression Ratio | 23.5:1 | 23.5:1 | 19.2:1 | 19.1:1 | 19:01 | 19.1:1 | 18.9:1 | 18.5:1 | 18.1:1 | 18:1 | 18:1 | |
| Alternator Model | STF-164A | STF-164A | STF-164B | STF-164C | STF-164D | STF-184E | STF-184E | STF-184H | STF-224C | STF-224D | STF-224E | |
| Votage Regulation | AVR | |||||||||||
| Excitation Method | Brushless | |||||||||||
| Open Type Size | mm | 1250x700x850 | 1300x810x930 | 1300x810x930 | 1380x810x930 | 1380x810x930 | 1580x810x990 | 1580x810x990 | 1580x810x990 | 1880x810x1165 | 1880x810x1165 | 1880x810x1165 |
| Open Type Weight | kg | 540 | 560 | 596 | 690 | 720 | 750 | 780 | 800 | 830 | 850 | 890 |
| Soundproof Size | mm | 1600x850x1000 | 1600x900x1000 | 1600x900x1000 | 1600x900x1000 | 1700x900x1000 | 1950x900x1000 | 1950x900x1000 | 1950x900x1000 | 2200x1050x1200 | 2200x1050x1200 | 2200x1050x1200 |
| Soundpoof Weight | kg | 760 | 790 | 860 | 930 | 970 | 1030 | 1060 | 1110 | 1140 | 1160 | 1210 |
