Sản phẩm
WEICHAI 94~400KVA
- Giá bán : Liên hệ
- Mã sản phẩm: WEICHAI 94~400KVA
- Lượt xem: 1284
- Quy cách:

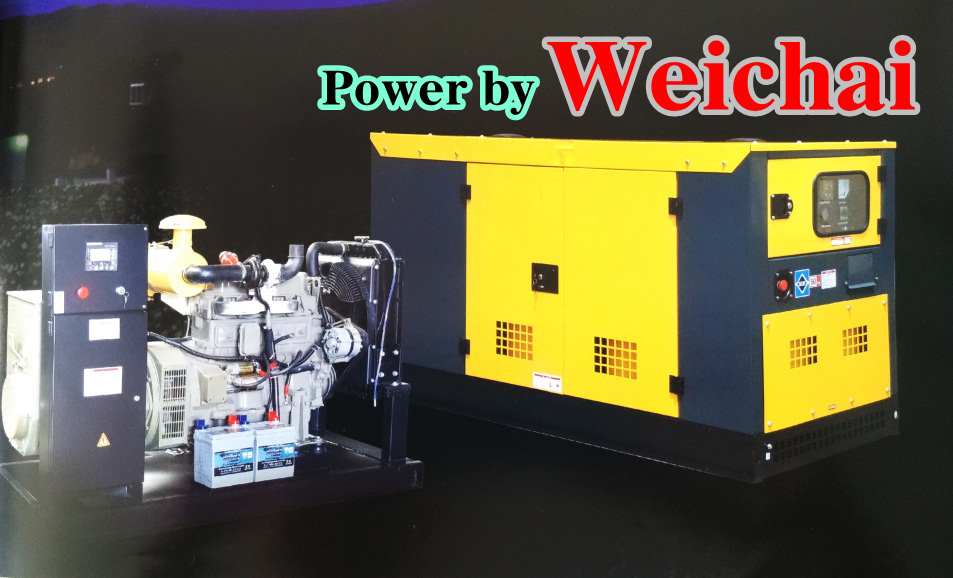

| Power by: | Weichai | ||||||||||||
| 94~400KVA | |||||||||||||
| Technical Data | |||||||||||||
| Genset Model | KPW94 | KPW110 | KPW135 | KPW150 | KPW165 | KPW180 | KPW220 | KPW250 | KPW275 | KPW330 | KPW350 | KPW400 | |
| Rated Power | KW/KVA | 68/85 | 80/100 | 96/120 | 108/135 | 120/150 | 136/170 | 160/200 | 180/225 | 200/250 | 240/300 | 260/325 | 304/380 |
| Standby Power | KW/KVA | 75/94 | 88/110 | 108/135 | 120/150 | 132/165 | 145/180 | 176/220 | 200/250 | 220/275 | 264/330 | 280/350 | 320/400 |
| Rated Voltage | V | 220V/127V380V/220V400V/230V415V/240V480V/277V600V/346V | |||||||||||
| Speed | RPM | 1500/1800 | |||||||||||
| Rated frequency | Hz | 50/60 | |||||||||||
| Engine Model | R6105ZD | R6105AZD | R6105AZLD | R6105IZLD1 | R6105IZLD | 6110ZLD | 6126ZD | 6126AZD | 6126AZLD | 6126IZD | 6126IZD | 6126IZD | |
| Engine Power | KW | 84 | 100 | 121 | 132 | 150 | 165 | 215 | 235 | 258 | 350 | 350 | 350 |
| Air intake way | Turbo | Turbo | Turbo | Turbo | Turbo | Turbo | Turbo | Turbo | Turbo | Turbo | Turbo | Turbo | |
| Governor | Electronic | Electronic | Electronic | Electronic | Electronic | Electronic | Electronic | Electronic | Electronic | Electronic | Electronic | Electronic | |
| Cylinder | QTY | 6 | 6 | 6 | 6 | 6 | 6 | 6 | 6 | 6 | 6 | 6 | 6 |
| Bore*stroke | mm*mm | 105x125 | 105x130 | 105x130 | 105x135 | 105x135 | 113x135 | 126x135 | 126x135 | 126x135 | 126x135 | 126x135 | 126x135 |
| Displacement | L | 6.49 | 6.49 | 6.75 | 7.01 | 7.01 | 7.522 | 9.726 | 9.726 | 9.726 | 9.726 | 9.726 | 9.726 |
| Fuel Consumption | g/kw.h | 224 | 224 | 224 | 224 | 231 | 215 | 221 | 221 | 221 | 221 | 221 | 221 |
| Compression Ratio | 17:1 | 16:1 | 17:1 | 16:1 | 16:1 | 17:1 | 16:1 | 16:1 | 16:1 | 16:1 | 16:1 | 16:1 | |
| Alternator Model | STF-224G | STF-274C | STF-274D | STF-274E | STF-274F | STF-274G | STF-274H | STF-274J | STF-274K | STF-314D | STF-314ES | STF-314FS | |
| Votage Regulation | AVR | ||||||||||||
| Excitation Method | Brushless | ||||||||||||
| Open Type Size | mm | 2400x900x1500 | 2400x900x1500 | 2500x900x1500 | 2500x900x1500 | 2550x900x1600 | 2550x900x1600 | 2700x900x1800 | 2700x900x1800 | 2700x900x1800 | 3000x1000x1800 | 3000x1000x1800 | 3000x1000x1800 |
| Open Type Weight | kg | 1250 | 1350 | 1400 | 1500 | 1610 | 1803 | 2160 | 2230 | 2480 | 2680 | 2850 | 3020 |
| Soundproof Size | mm | 2800x1050x1600 | 2800x1050x1600 | 2900x1050x1700 | 2950x1050x1700 | 2950x1050x1800 | 2950x1050x1800 | 3200x1150x1900 | 3200x1150x1900 | 3200x1150x1900 | 3600x1300x2000 | 3600x1300x2000 | 3600x1300x2000 |
| Soundpoof Weight | kg | 1950 | 2050 | 2150 | 2480 | 2510 | 2710 | 3060 | 3120 | 3450 | 3700 | 3950 | 4100 |
