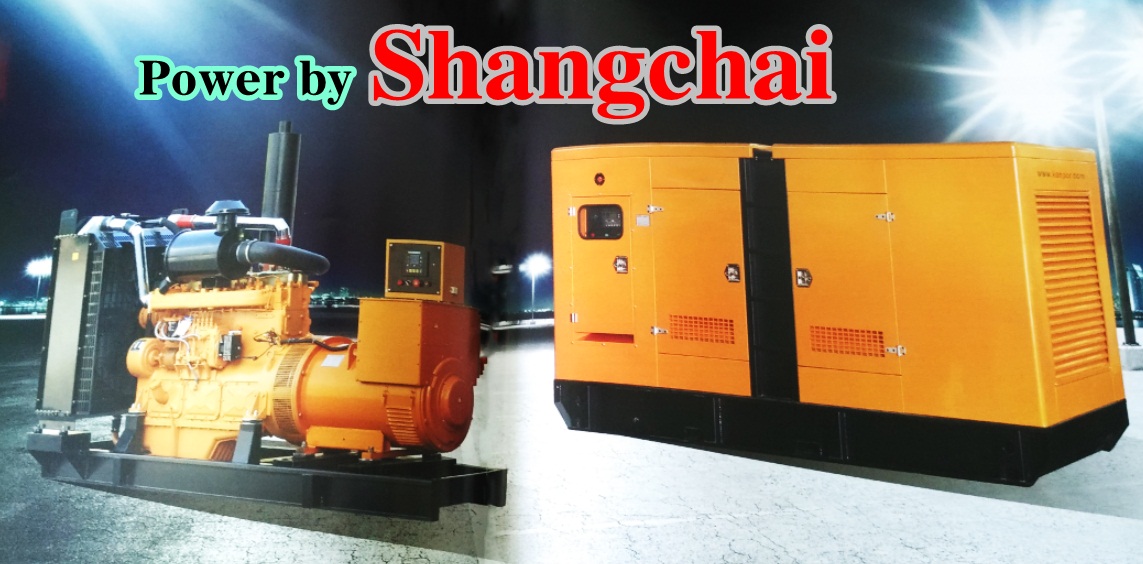

SHANGCHAI 80~300KVA
- Giá bán : Liên hệ
- Mã sản phẩm: SHANGCHAI 80~300KVA
- Lượt xem: 1197
- Quy cách:
| Power by: | SHANGCHAI | |||||||||||
| 80~300KVA | DIESEL GENERTATOR SETS | |||||||||||
| Technical Data | ||||||||||||
| Genset Model | KPS80 | KPS94 | KPS135 | KPS150 | KPS180 | KPS200 | KPS220 | KPS225 | KPS250 | KPS275 | KPS300 | |
| Rated Power | KW/KVA | 58/72.5 | 68/85 | 96/120 | 112/140 | 128/160 | 144/180 | 160/200 | 160/200 | 180/225 | 200/250 | 220/275 |
| Standby Power | KW/KVA | 64/80 | 74.5/93.5 | 108/135 | 120/150 | 144/180 | 160/200 | 176/220 | 180/225 | 200/250 | 220/275 | 240/300 |
| Rated Voltage | V | 220V/127V380V/220V400V/230V415V/240V480V/277V600V/346V | ||||||||||
| Speed | RPM | 1500/1800 | ||||||||||
| Rated frequency | Hz | 50/60 | ||||||||||
| Engine Model | SC4H95D2 | SC4H115D2 | SC4H160D2 | SC4H180D2 | SC7H230D2 | SC7H230D2 | SC7H250D2 | SC8D280D2 | SC9D310D2 | SC9D340DZ | SC9D340DZ | |
| Engine Power | KW | 68 | 86 | 116 | 132 | 170 | 170 | 185 | 205 | 228 | 255 | 255 |
| Air intake way | Turbo | Turbo | Turbo | Turbo | Turbo | Turbo | Turbo | Turbo | Turbo | Turbo | Turbo | |
| Governor | Electronic | Electronic | Electronic | Electronic | Electronic | Electronic | Electronic | Electronic | Electronic | Electronic | Electronic | |
| Cylinder | QTY | 4 | 4 | 4 | 4 | 6 | 6 | 6 | 6 | 6 | 6 | 6 |
| Bore*stroke | mm*mm | 105x124 | 105x124 | 105x124 | 105x124 | 105x124 | 105x124 | 105x124 | 114x144 | 114x144 | 114x144 | 114x144 |
| Displacement | L | 4.3 | 4.3 | 4.3 | 4.3 | 6.5 | 6.5 | 6.5 | 8.82 | 8.82 | 8.82 | 8.82 |
| Fuel Consumption | g/kw.h | 204 | 204 | 198 | 198 | 193 | 193 | 193 | 195 | 195 | 195 | 195 |
| Compression Ratio | 15.9:1 | 17.3:1 | 16:1 | 16:1 | 15.9:1 | 15.9:1 | 16:1 | 18:1 | 16.5:1 | 16.5:1 | 16.5:1 | |
| Alternator Model | STF-224F | STF-224G | STF-274D | STF-274E | STF-274F | STF-274G | STF-274H | STF-274H | STF-274J | STF-274K | STF-314C | |
| Votage Regulation | AVR | |||||||||||
| Excitation Method | Brushless | |||||||||||
| Open Type Size | mm | 1900x800x1200 | 2000x900x1200 | 2300x900x1300 | 2400x900x1450 | 2670x900x1690 | 2700x1000x1690 | 2700x1020x1690 | 3000x1300x1900 | 3000x1300x1900 | 3000x1300x1900 | 3000x1300x1900 |
| Open Type Weight | kg | 1280 | 1320 | 1450 | 1660 | 1780 | 1880 | 2180 | 2200 | 2280 | 2350 | 2410 |
| Soundproof Size | mm | 2300x1050x1300 | 2400x1100x1400 | 2700x1100x1500 | 2800x1150x1700 | 3200x1150x1800 | 3200x1150x1800 | 3200x1150x1800 | 3500x1500x2000 | 3500x1500x2000 | 3500x1500x2000 | 3500x1500x2000 |
| Soundpoof Weight | kg | 1690 | 1750 | 1950 | 2180 | 2680 | 2780 | 3100 | 3210 | 3260 | 3380 | 3480 |
