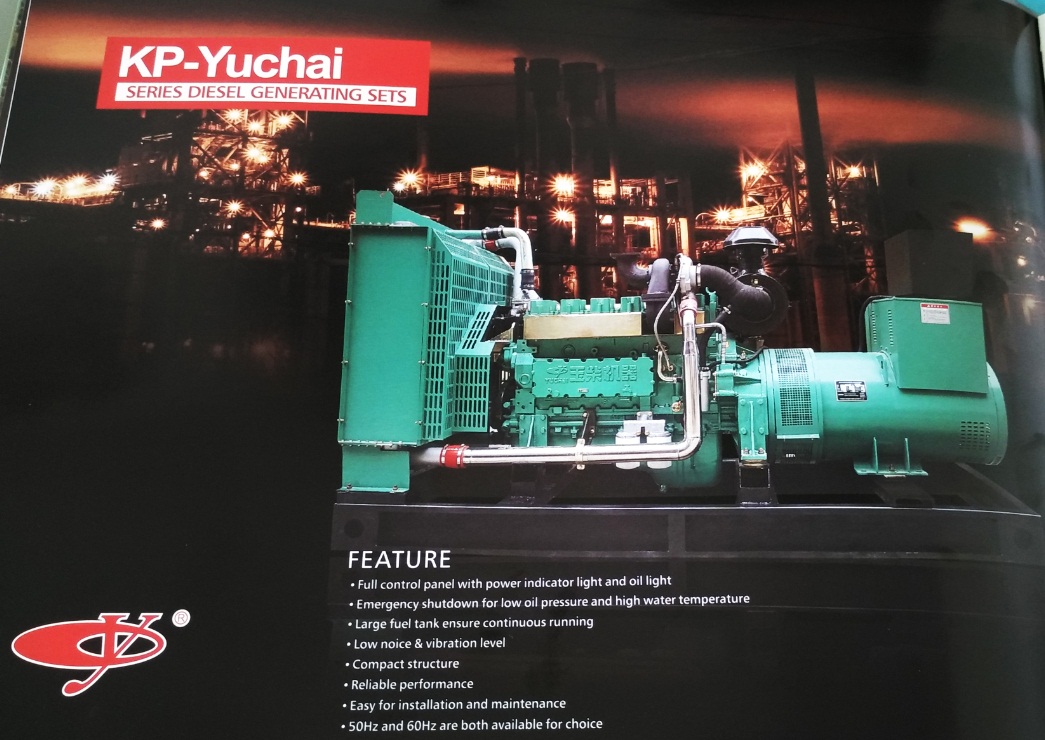

YUCHAI 110~275KVA
- Giá bán : Liên hệ
- Mã sản phẩm: YUCHAI 110~275KVA
- Lượt xem: 1137
- Quy cách:
| Power by: | Yuchai | |||||||||
| 110~275KVA | DIESEL GENERTATOR SETS | |||||||||
| Technical Data | ||||||||||
| Genset Model | KPYC110 | KPYC135 | KPYC150 | KPYC180 | KPYC200 | KPYC200 | KPYC225 | KPYC250 | KPYC275 | |
| Rated Power | KW/KVA | 80/100 | 96/120 | 112/140 | 128/160 | 144/180 | 144/180 | 160/200 | 180/225 | 200/250 |
| Standby Power | KW/KVA | 88/110 | 108/135 | 120/150 | 144/180 | 160/200 | 160/200 | 180/225 | 200/250 | 220/275 |
| Rated Voltage | V | 220V/127V380V/220V400V/230V415V/240V480V/277V600V/346V | ||||||||
| Speed | RPM | 1500/1800 | ||||||||
| Rated frequency | Hz | 50/60 | ||||||||
| Engine Model | YC6B135Z-D20 | YC6B1155L-D21 | YC6B180L-D20 | YC6A200L-D20 | YC6A230L-D20 | YC6G245L-D20 | YC6M285L-D20 | YC6M285L-D20 | YC6M350L-D20 | |
| Engine Power | KW | 99 | 113 | 132 | 145 | 170.5 | 181.5 | 211.2 | 211.2 | 258.8 |
| Air intake way | Turbo | Turbo | Turbo | Turbo | Turbo | Turbo | Turbo | Turbo | Turbo | |
| Governor | Mechanical | Mechanical | Mechanical | Mechanical | Mechanical | Mechanical | Mechanical | Mechanical | Mechanical | |
| Cylinder | QTY | 6 | 6 | 6 | 6 | 6 | 6 | 6 | 6 | 6 |
| Bore*stroke | mm*mm | 108x125 | 108x125 | 108x125 | 108x132 | 108x132 | 112x132 | 120x145 | 120x145 | 120x145 |
| Displacement | L | 6.871 | 6.871 | 6.871 | 7.252 | 7.252 | 7.8 | 9.839 | 9.839 | 9.839 |
| Fuel Consumption | g/kw.h | 202 | 200 | 200 | 192 | 192 | 195 | 197 | 197 | 197 |
| Compression Ratio | 17.5:1 | 17.5:1 | 17.5:1 | 17.5:1 | 17.5:1 | 16.8:1 | 17.5:1 | 17.5:1 | 17.5:1 | |
| Alternator Model | STF-274C | STF-274D | STF-274E | STF-274F | STF-274G | STF-274G | STF-274H | STF-274J | STF-274K | |
| Votage Regulation | AVR | |||||||||
| Excitation Method | Brushless | |||||||||
| Open Type Size | mm | 2500x900x1500 | 2500x900x1500 | 2500x900x1500 | 2500x900x1600 | 2500x900x1600 | 2600x900x1700 | 2800x900x1800 | 2800x900x1800 | 3000x1000x1800 |
| Open Type Weight | kg | 1450 | 1520 | 1600 | 1680 | 1790 | 1820 | 2080 | 2180 | 2300 |
| Soundproof Size | mm | 2900x1100x1600 | 2900x1100x1600 | 2900x1100x1600 | 2950x1150x1700 | 2950x1150x1700 | 3000x1150x1800 | 3200x1150x1900 | 3200x1150x1900 | 3600x1300x1900 |
| Soundpoof Weight | kg | 2150 | 2380 | 2480 | 2580 | 2780 | 2830 | 3030 | 3190 | 3360 |
